What Causes Pipe Bellying And How Do You Fix It?

What Is a Pipe Belly and Why Does It Cause Problems?

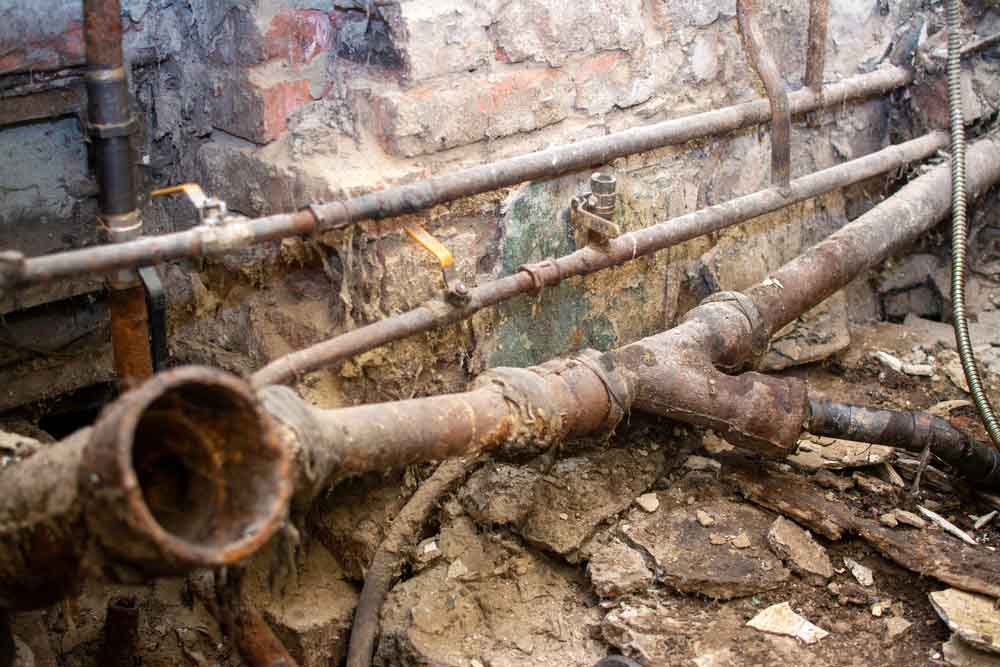

A pipe belly — also called a bellied pipe or a sag — is a section of sewer line that has settled downward, creating a low point where waste pools rather than draining toward the municipal main. Gravity-flow sewer pipes work because they maintain a continuous downward slope from the house to the street connection. When any section loses that slope due to soil movement, poor original installation, or disturbance from nearby excavation, waste accumulates at the low point, solids build up, and backups follow.

Pipe bellying is common in Delaware County for a specific reason: significant portions of the county’s residential neighborhoods were developed on former agricultural land with variable soil density. Clay-heavy soil retains moisture and shifts with seasonal changes; sandy or fill soil compacts inconsistently over time. Both conditions cause differential settlement beneath buried pipe, particularly clay tile pipe from the pre-1960 era that was installed in segments with no continuous bedding support.

How a Pipe Belly Forms

Differential Soil Settlement

When the soil supporting a section of pipe compacts or shifts unevenly, that section sinks relative to the rest of the run. In clay tile laterals — the most common pipe type in Delaware County homes built before 1960 — individual segments can settle independently at their mortar joints. The result can be multiple shallow low points along a single lateral rather than a single obvious collapse. The heavier clay tile is also more susceptible to joint separation as the soil moves beneath it, which compounds the belly problem with infiltration.

Poor Original Installation

Pipe installed without proper bedding material or with inadequate compaction of the surrounding soil settles after installation. This was common in residential construction from the 1940s through the early 1970s, before modern bedding specifications became standard practice. A belly located close to the house foundation often reflects original installation quality rather than subsequent soil movement — particularly in homes where the lateral was installed at the same time as the foundation without separate bedding for the pipe run.

Disturbance from Nearby Excavation

Utility work in the street, landscaping excavation, pool installation, or additions to the home can disturb the soil around an existing lateral. If a belly appears or worsens shortly after nearby excavation work, that disturbance is likely a contributing factor. The pipe does not need to be directly contacted to be affected — soil disturbance within several feet of the pipe changes the support conditions beneath it.

Detecting a Pipe Belly

The only reliable way to confirm a pipe belly is a sewer camera inspection. The camera records the pipe interior in real time; a belly shows as a water-filled low point where the camera operator can observe the slope reversing from the intended downward grade. Standing water in the pipe between the house and the main is a strong indicator.

Symptoms that suggest a possible belly include recurring backups that clear temporarily with augering but return within weeks, slow drains across multiple fixtures with no obvious clog source, and sewage odors from floor drains or basement fixtures. None of these symptoms confirm a belly on their own — other structural problems produce the same symptoms. The camera is the diagnostic tool.

Can a Pipe Belly Be Repaired Without Digging?

In most cases, no. A bellied pipe has settled into a new position. CIPP lining can be installed through a bellied section if the belly is shallow and the liner passes through without obstruction, but the liner does not restore the pipe’s slope — it lines the interior of the sagged section. If the belly consistently holds standing water and catches solids, lining alone does not solve the functional problem. The pipe’s alignment needs correction, not just a new interior surface.

The standard repair for a bellied pipe is excavation and re-bedding: opening the ground above the affected span, removing and replacing the sagged section with properly sloped pipe installed on compacted bedding material. In cases where only one section has settled, the repair can be limited to that span. Where the problem reflects a longer run of poor original installation, the full lateral may need evaluation before committing to a spot repair.

Pipe bursting is an option in some belly situations — if the pipe is deformed but still open enough for a bursting head to pass, bursting a new pipe through the existing run can correct alignment because the new pipe follows the grade set by the pulling cable. This is assessed case by case based on the severity of the belly.

Frequently Asked Questions

Is a small pipe belly an emergency?

Not immediately, but it will worsen. A belly that holds a modest amount of standing water will accumulate solids over time, and backups become more frequent. Once a camera confirms a belly, scheduling the repair promptly — rather than waiting for a full backup — avoids the emergency service call and the associated disruption to the household.

How is a pipe belly different from a collapsed pipe?

A bellied pipe retains some open passage — the pipe has sagged but not closed off. A collapsed pipe has no open passage and produces an immediate backup. Both problems show clearly on a sewer camera. A belly that is left unaddressed can eventually collapse as accumulated waste and soil pressure continue to act on the deformed section, so the distinction matters mainly for timing the repair.

Will a pipe belly show up on a home inspection before I sell?

Yes. Buyers in Delaware County increasingly run a sewer scope as part of the home inspection process. A camera-confirmed belly will appear in the inspection report and typically becomes a negotiating point or a required repair condition of sale. Addressing a known belly before listing is generally less disruptive than negotiating it mid-transaction under deadline pressure.

Schedule a Sewer Camera Inspection in Delaware County

If your Delaware County home has recurring backups or slow drains that clearing does not permanently resolve, a sewer camera will tell you whether a pipe belly is the cause. Call Advanced Drains & Underground Solutions at 1-855-DONT-DIG (1-855-366-8344) to schedule an inspection. We serve Springfield, Havertown, Upper Darby, Media, Drexel Hill, Newtown Square, and all of Delaware County, PA.
